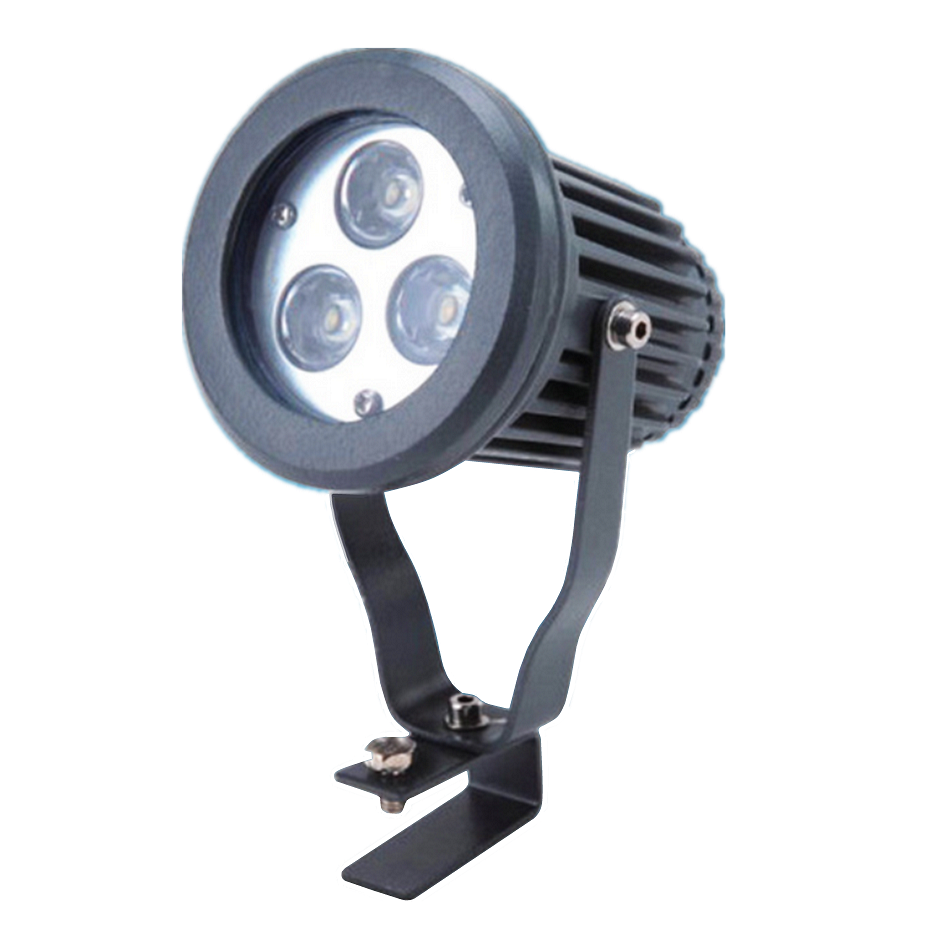

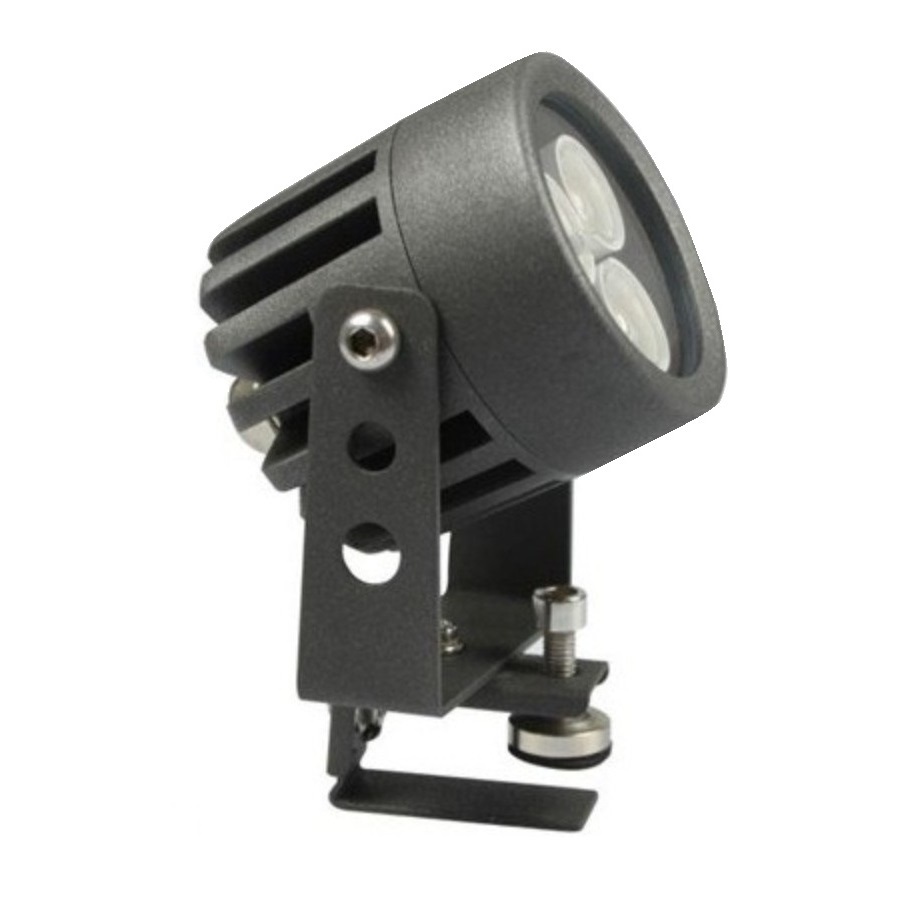

YH-WPD-006 (roof spotlight)
Product Specifications |
|
Model |
YH-WPD006 |
Power |
1-3W |
Lifespan |
50,000 hours |
Light source |
Default wafer chip (other customizable: Preh, CREE, OSRAM, Philips, etc.) |
Number of lamp beads |
1、3 |
Single power |
1W |
LED color |
RGB,RGBW,R G B W Y |
Color Effects |
Chasing, flowing water, 256-level grayscale, full color, monochrome |
beam horn | 1-3°、8°、15°、20°、30°、45°、60°、90°; |
LED driving method | 300mA Constant current drive; |
protection Grade | IP65 |
safe Grade | DC24V Class III AC220V Class I |
Power Line | DC24V 2*1.0mm² cable |
Power Line | AC220V 3*1.0mm² cable |
Signal Wire | —————— |
Control method | DMX512 Control |
environment Temperature | - 25—45° |
Product Size | See Drawings |
outside Material | high Precision aviation aluminum + tempered glass |
Luminous flux | 100 -120LM/W |
work Temperature | - 20- +60° |
Driver Way | built-in High power constant current power supply |
Yes Dimming | Stand Adjustment |
Outline Way | bottom Outlet (stainless steel waterproof screw) |
fit Location | outdoor Building advertising, highway bridges, garden landscape places |
► Precautions before installation
Open the package, check the product carefully, please handle it with care;
If you find any damage to the product, please keep the product packaging and report it to the customer in a timely manner;
Please do not attempt to use damaged products;
The installation of the product must be performed by a licensed professional electrician;
Non-professionals, please do not dismantle and repair, our company has the right to refuse to provide replacement or warranty services for dismantled and repaired products.
►Installation steps
Please disconnect the power supply before installation. During the installation process, live operation is strictly prohibited;
Open two holes with the same size as the screw holes on the physical product bracket at the place to be installed, and install the screws;
Adjust the angle of the light body according to the light angle of the object to be illuminated, and fix the light body;
Wiring, connect the brown wire left on the side of the lamp to the positive pole of the power supply, and the blue wire to the negative pole of the power supply
After confirming that the connection is correct, turn on the power and the lamp can work normally.
►Tips
In order to ensure the normal operation of the product, please use the voltage within the voltage range of the lamp label;
Please follow the correct installation steps to install the product;
When installing and disassembling the product, please disconnect the power supply of the lamp to avoid the risk of leakage.
► Troubleshooting
If it is not due to improper operation, please confirm whether it is caused by the following reasons. If the problem cannot be solved by taking the indicated method, please stop using it and contact a qualified electrician or directly contact the manufacturer;
A: After the power is turned on, the lamp does not emit light and works?
Disconnect the power supply Please check whether the power cord of the lamp is in good connection with the power supply (or mains), and whether the power supply is in good condition;
B: The lamp is still not emitting light with good wiring?
Ask a qualified electrician to check whether the supply voltage of the lamp is lower than the rated voltage of the lamp itself.
►Maintenance Precautions
Before cleaning the lamps, be sure to turn off the power;
Please do not use cosmetic items or corrosive things for cleaning.
