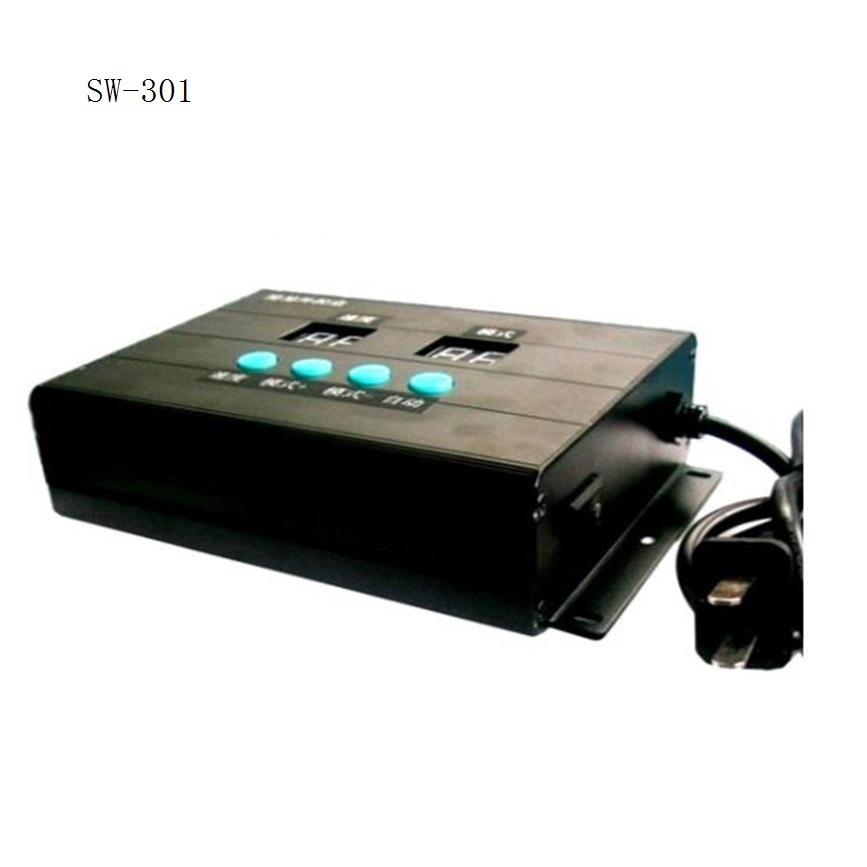

SW-301 (High Power Wall Washer Flood Light Controller)

YH-WPD-005

YH-WPD-005YH-WPD-005

◆Overview

1. The SW-301 controller is suitable for all kinds of LED guardrail tubes or building outlines with point light sources.

Support scheme: TM1803/TM1809/TM1804/TM1812, etc.,

UCS1903/UCS1909/UCS1912/UCS2903/2909/2912 etc.,

WS2811; BS0825/BS0901/BS0902, etc.;

Civic two-wire microcontroller (J69/J08/F16/J12/J68/F01, etc.);

Civic three-wire microcontroller (D63/D06/D08/D16/D12/D01, etc.);

DMX512 high-power module (P12/P14/P15/P16/P17, etc.).

2. Comes with professional effect making software, users can make any effect by themselves and put it into the SD card for use.

※ The user can reset the player software and production effect according to the actual project

3. The effect can be selected automatically or manually, the speed can be adjusted, and the AC synchronization can be selected.

4. The RS-485 output can be applied to a full range of sub-controllers and DMX512 modules.

◆Hardware parameters

Main control size: 192L×122W×45H (mm)

Maximum power: less than 3W

Input voltage: AC 220V

Working temperature: -20℃ ~ 70℃

Working environment: dry indoor, avoid moisture and rain.

Output signal: 2 RS-485 signals + 8 TTL level signals

※All output data are the same

Controllable points:

Single-line lamps: 1280 points

Two-wire lamps: 120 meters (J69 up to 240 meters)

Three-line lamps: 960 points

DMX512 module: 170 points (recommended)/340 points (requires customer decoding chip support)

Supporting accessories: [SD card] 1;

【Terminals】Each channel is equipped with one;
